AM-LFD001
Amber
AM-LFD001

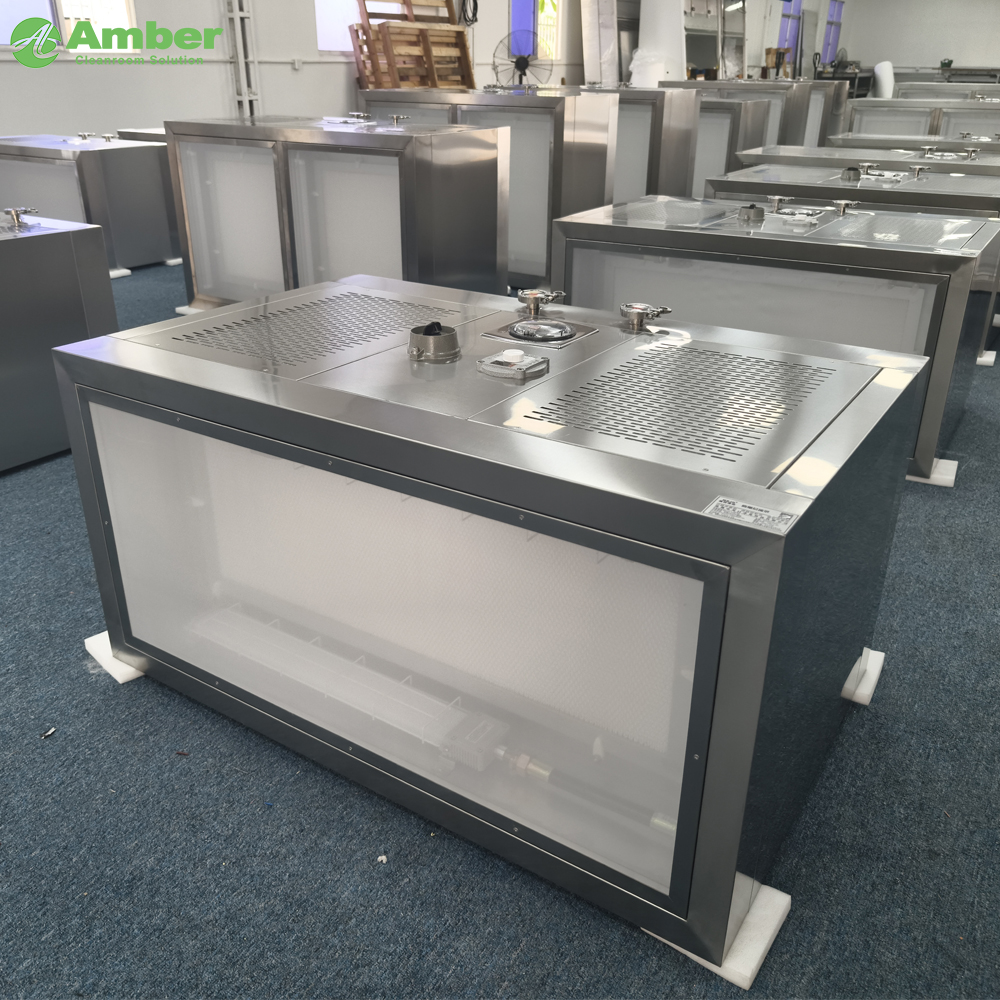

Laminar Flow Hood can be used in the provision of local high cleanliness. It controls the dust particles in the airflow with fans and high-efficiency filters, and after the purified airflow passes the flow-equalizing membrane, it is uniformly delivered to areas covered by the laminar flow hood, which enhances the cleanliness of the area, which in turn preserves the production and operating environment and the safety of materials used in the area.
The Class 100 Laminar Flow Hood has a high-efficiency filtration system that supplies air with primary and high-efficiency filtration into the working area in an efficient laminar flow pattern to create a Class 100 Clean Room Condition. This laminar airflow is quite useful to isolate ambient air contaminants and sensitize the working space. The standardized and dedicated UV sterilizer can be used to sterilize the operating environment before and after operating, as it can potentially eliminate microbial residuals and protect both the processes of experiments and production in a dual manner.

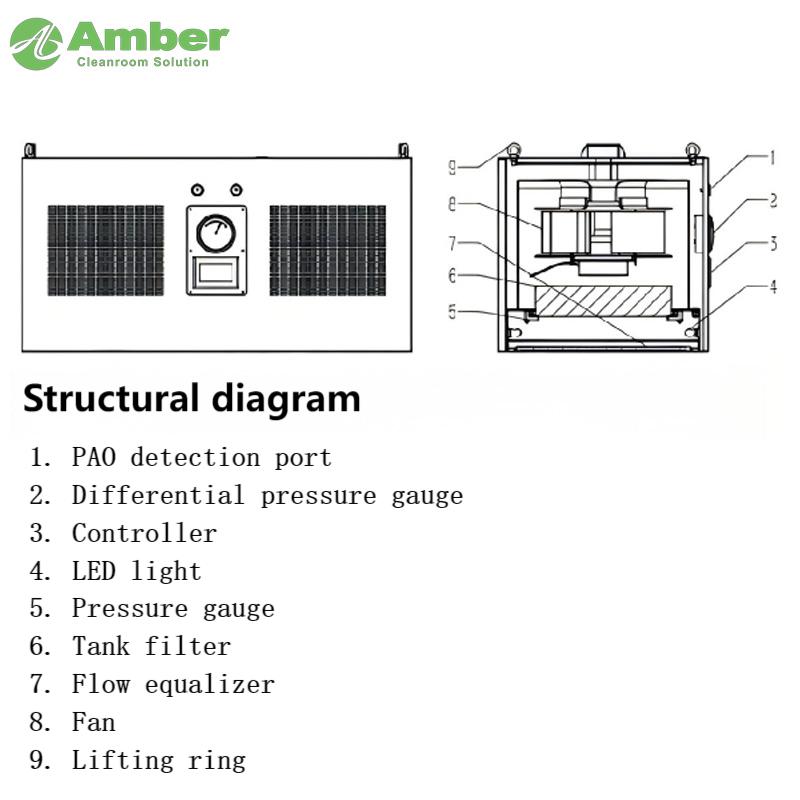

Housing frame: Made of high-quality cold-rolled steel or stainless steel, it's durable and corrosion-resistant.
High-efficiency filters (HEPA/ULPA): Core components ensure the air supply meets Class 100 standards.
Blower system: Provides stable air pressure and ensures even airflow into the operating area.
UV sterilization lamp: Assists in sterilization, effectively reducing the risk of bacterial and microbial contamination.
Control panel: User-friendly design supports air speed adjustment, UV lamp control, and operating status display.
In addition, some Laminar Airflow Workbench units are portable, serving as portable Laminar Flow Hoods, making them ideal for labs requiring flexibility and mobility.
Modular design facilitates transportation and installation, adapting to varying site layout requirements.
Laminar flow hood-specific fans offer high stability and low noise.
Double-layer construction reduces fan vibration and noise, while maintaining a simple and aesthetically pleasing appearance.

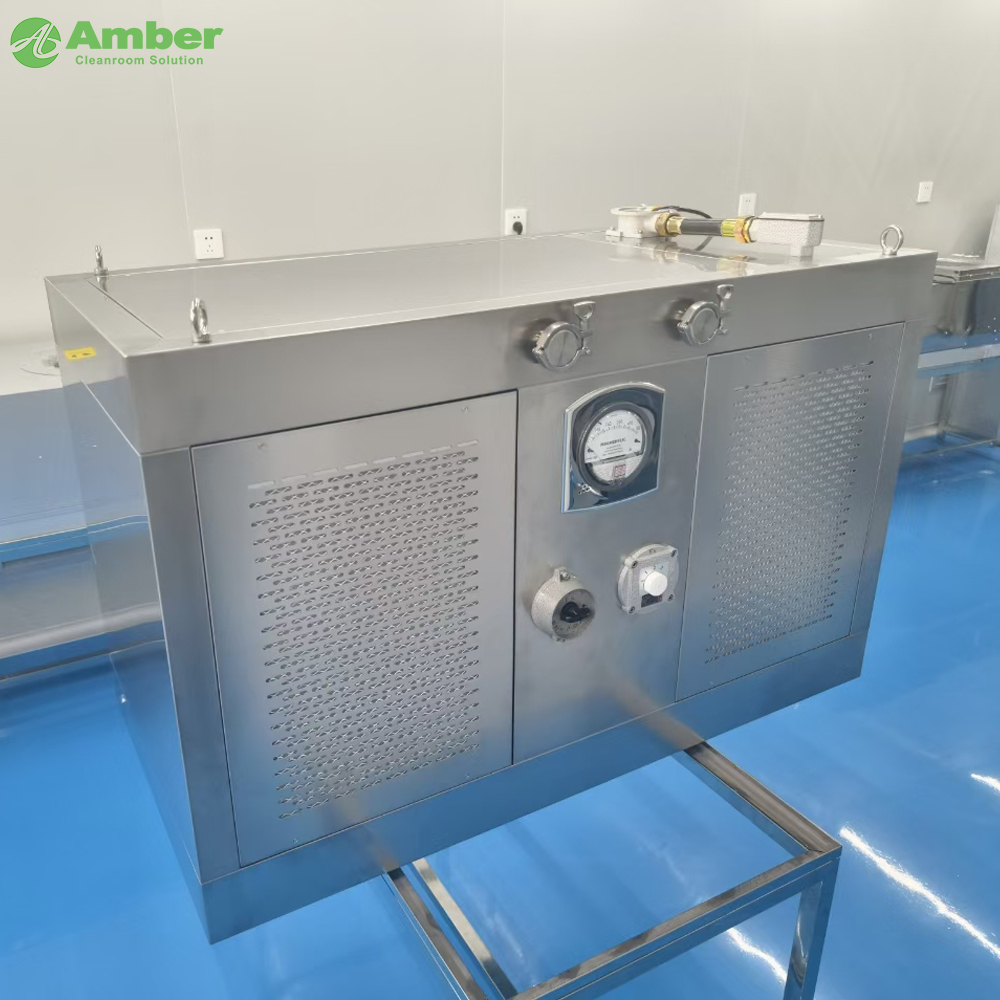

PAO test port facilitates installation verification after filter replacement, while a differential pressure gauge monitors HEPA filter usage in real time.
Side indoor return, top indoor return, side pipe return, and top pipe return configurations are available to meet site requirements.

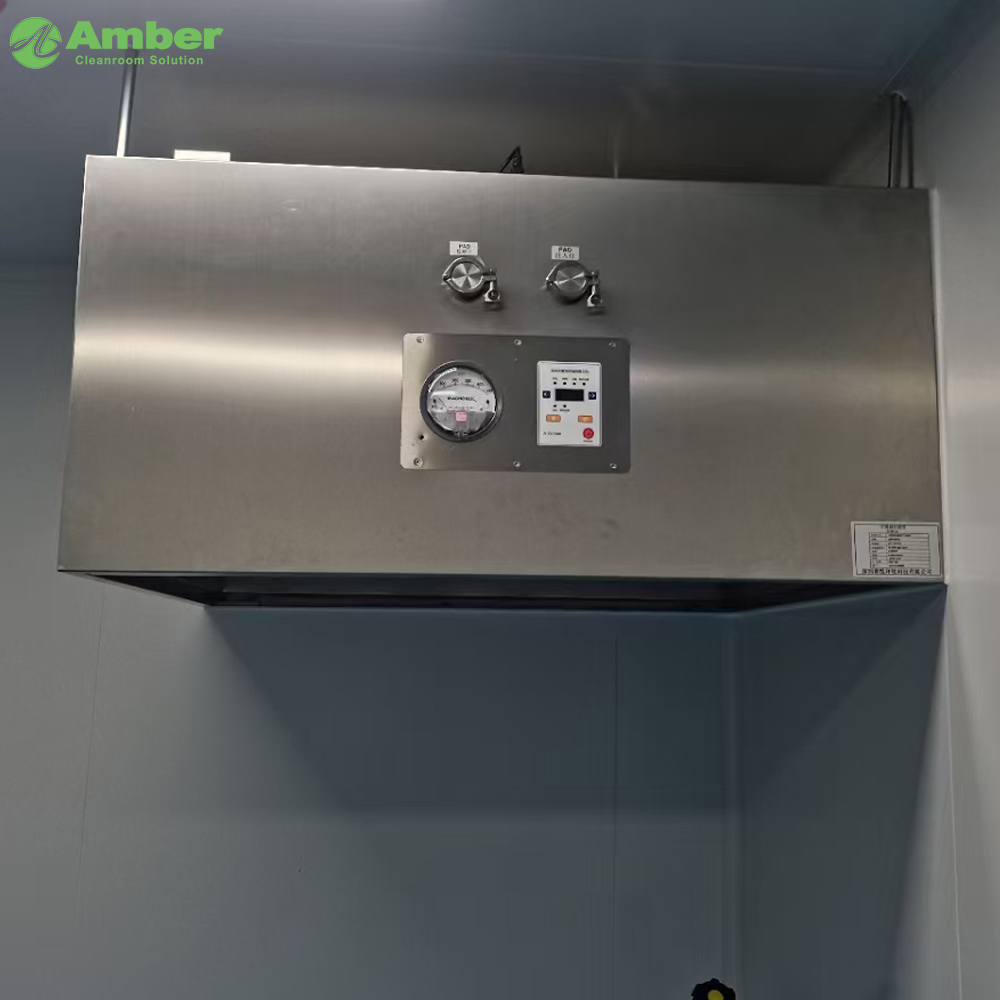

Various mounting options are available, including suspended and bracket mounting.
Depending on the installation height, the IC control panel can be integrated with the laminar flow hood or a separate control box can be mounted on the wall at a suitable height.
Pharmaceutical factories
Laboratories,

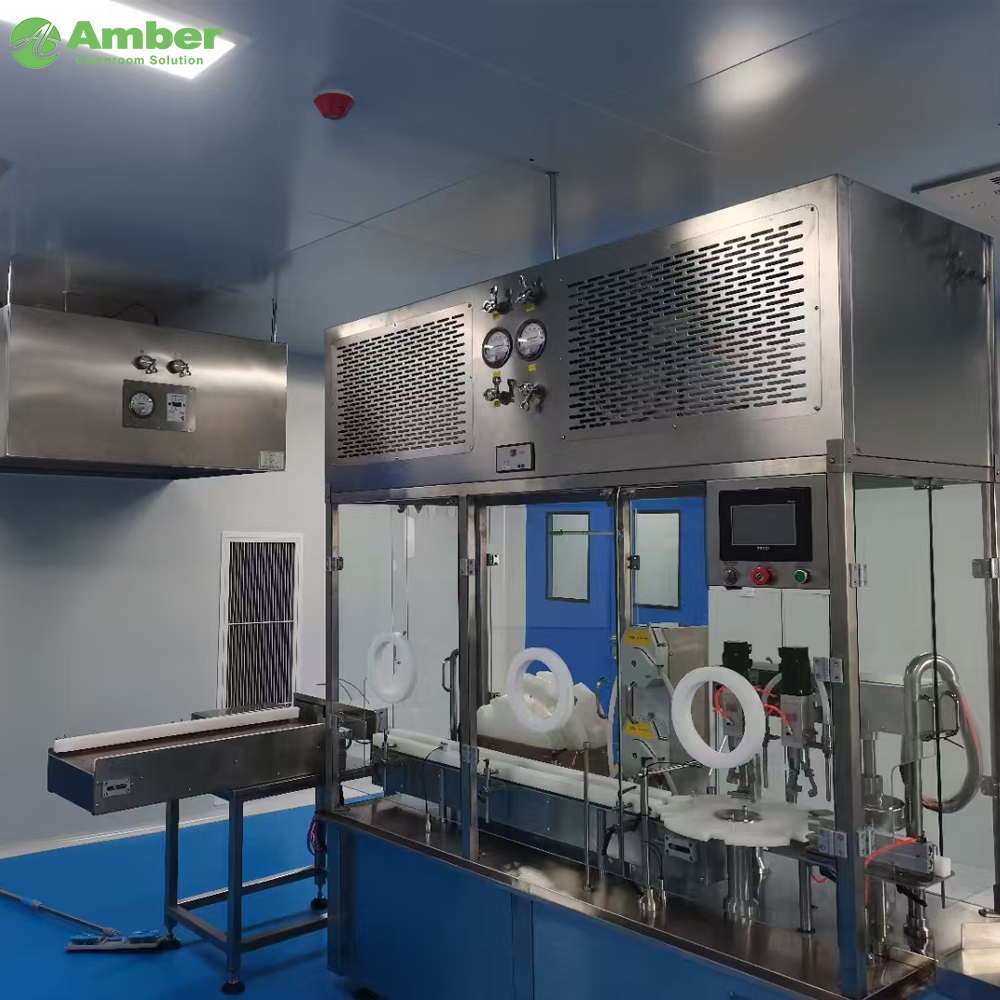

Production lines in clean workshops
And other places where partial cleaning is required to reach Class 100
| Control Display | 1 set |
| Cleanliness grade | Class 100 |
| Air speed | 0.45m/s±20% |
| Filtration efficiency | 99.9995% |
| Noise | ≈60dB |
| Power supply | AC 220V/50HZ |
| Power rating | 200W |
| Specifications of liquid tank HEPA filter | 1100*500*93 |
| External dimensions | Designed according to required size |
Q1: What is the difference between the Laminar Air Flow Hood and the Laminar Airflow Workbench?
A: Both are laminar flow hoods, the only difference being the area of application. The Laminar Air Flow Hood is better suited to a fixed deployment within cleanroom laboratory facilities or production lines, whereas the Laminar Airflow Workbench is a benchtop design, better suited to small experiments and test operations, and single-person use is straightforward.
Q2: How should a Class 100 Laminar Flow Hood be maintained?
A: Daily maintenance mainly involves regularly cleaning the operating area, step-by-step replacing the HEPA filter, and checking the fan's operation. Our Laminar Air Flow Hood is a modular design. The time is shorter to require maintenance and replacement of a component.
Q3: Can we offer custom production?
A: We do offer customization options, including size, filter grade, material selection, and functional expansion. With over 17 years of industry experience, we can provide one-stop solutions, from design to installation, tailored to the needs of individual cleanroom projects.
