AM-CB013
Amber
AM-CB013

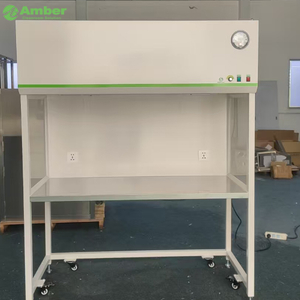

Airflow double Vertical Flow Clean Bench is a high performance clean operation equipment, which offers a local dust free and sterile working environment to electronic, pharmaceutical, medical, as well as research laboratories. This product utilises dual-sided Vertical Laminar Flow technology to effectively prevent particle contamination on product surfaces, ensuring the operational area consistently meets ISO Class 5 cleanliness standards.
Users tend to confuse Clean Bench Hoods with Laminar Flow Hoods. Actually, Clean Benches are aimed at product protection, and they utilize high-efficiency HEPA filters to enforce clean airflow in the unidirectional pattern over the work area, avoiding recirculation of air and subsequent contamination. Laminar Flow Hoods are however found mainly in the industries with very high environmental demands, like pharmaceuticals and biological research, some of the models also provide operator and environmental protection.
Therefore, when selecting equipment, it is essential to configure it appropriately based on the actual application scenario and safety level requirements.
Clean airflow is delivered horizontally, making them suitable for electronic component testing and optical component assembly.
feature vertical unidirectional airflow, with airflow flowing downward to cover the operational area, effectively reducing the impact of operations on the environment. They are widely used in pharmaceuticals, laboratories, and the medical industry.
Amber's Vertical Flow Clean Bench adopts a dual-side vertical flow design, not only enhancing cleanliness but also expanding the workspace, making it suitable for simultaneous operation by two people.
1. HEPA high-efficiency filters with filtration efficiency ≥99.995%, and high-efficiency dual-side vertical unidirectional airflow
2. Equipped with a digital display control panel, featuring a user-friendly intelligent operating system that monitors airflow speed and operational status in real-time
3. Large-capacity 1500m³/h airflow design
| Model | VFCB-1000 one position | VFCB-1500 two position |
| Outer size mm | 1000*650*1800 | 1500*650*1800 |
| Work area size mm | 900*600*600 | 1400*600*600 |
| Cleanliness | Class 100 ISO 14644-1 | |
| Air flow | 900m³/h | 1500m³/h |
| Air flow speed | 0.45±20% | |
| HEPA filter size | 880*570*69*1 | 760*570*69*2 |
| Filtering efficiency | 99.99%@0.3μm | |
| LED light power | 20W*1 | 40W*1 |
| Fan power | 190W | 270W |
| Noise | ＜65dB | |
| Voltage / Power | AC 220V/50HZ | |
Q1: How often should the HEPA filter be replaced?
A: Recommend replacing it every 6-12 months, depending on the usage environment and frequency, or immediately when the airflow decreases or the cleanliness level becomes abnormal.
Q2: What industries is the AMBER Clean Bench suitable for?
A: It is widely used in electronic manufacturing, pharmaceuticals, laboratory cell culture, food testing, and cleanroom environments.
