Building a facility's exterior shell—foundation, roofing, and structural walls—constitutes a significant portion of any building's expenditure. Manufacturers can reallocate cash to what generates ROI: high-end filtration systems, advanced IoT-based monitoring, and precision production equipment. * Pro Tip: Retrofitting frequently qualifies for tax breaks linked to urban redevelopment and sustainable building usage.
In businesses like semiconductors and pharmaceuticals, being three months late might cost millions of dollars in lost chances. Land acquisition, environmental impact studies, and intricate foundation permissions are all part of the lengthy processes associated with new construction.
The Retrofit Advantage: Because the primary structure is already approved and standing, the period between design and ISO certification can be reduced by 30% to 50%.
The "war for talent" is an actual phenomenon. Highly experienced engineers and laboratory professionals frequently prefer to work in or near urban areas rather than distant industrial parks.
Proximity: Retrofitting existing urban warehouses allows businesses to remain close to specialized labor pools and critical logistical hubs, decreasing commute times and increasing supply chain resilience.
The Problem: Cleanrooms require a lot of overhead space for HVAC ducting, HEPA filters, and lighting, but older warehouses frequently have low ceilings.
The Solution: * Use Slim-line Fan Filter Units (FFUs) to conserve inches.
Using side-wall return air systems rather than standard ceiling plenums.Custom-designed low-profile structural grids.

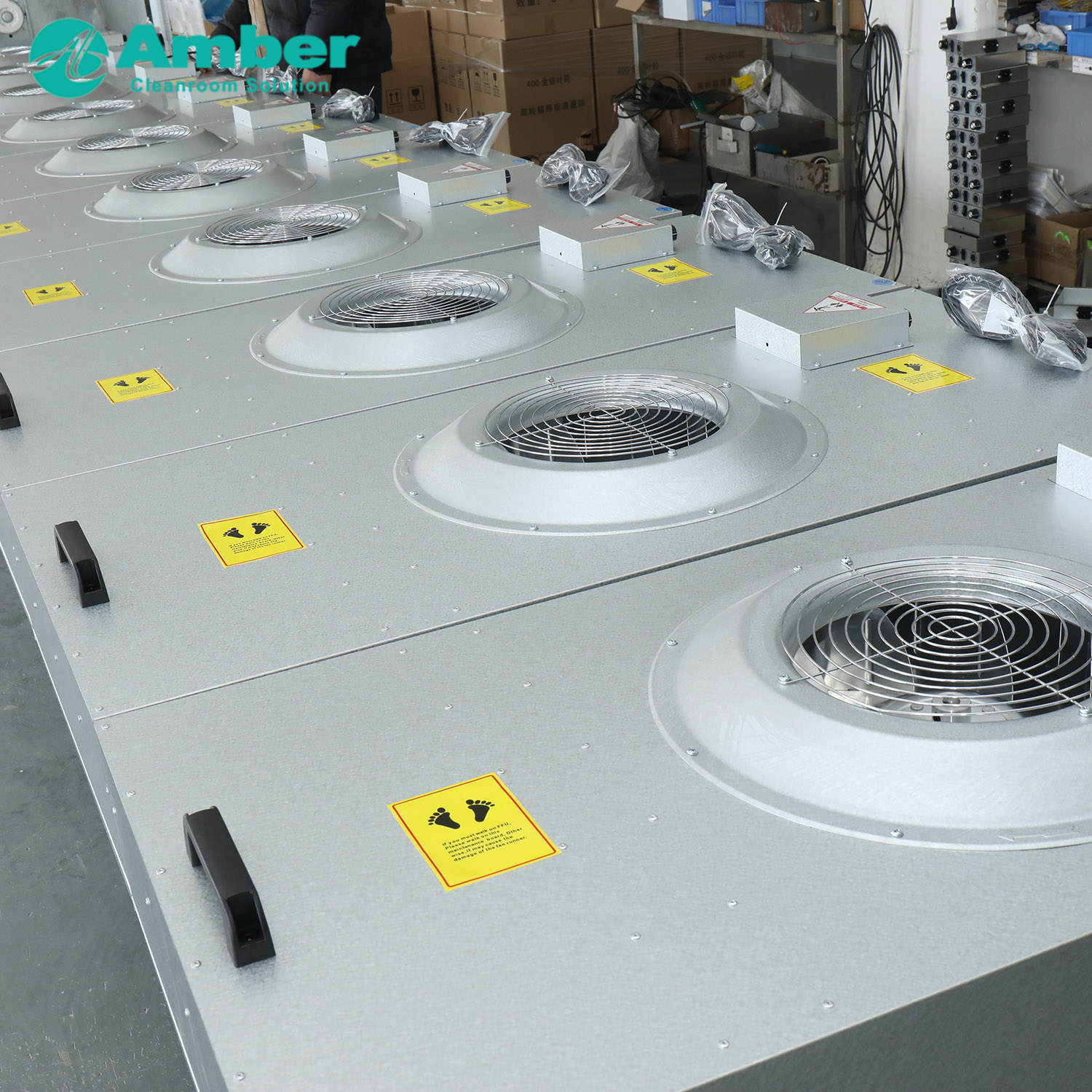

In a typical cleanroom, the FFU is the "bulky" component mounted on the ceiling grid. Traditional units might be 13 to 15 inches deep. That is an unaffordable luxury in a low-ceiling environment.
The Technology: Slim-line FFUs use External Rotor Motors or high-efficiency EC (Electronically Commutated) Motors, which are physically flatter. These pieces can make the profile as small as 6-9 inches.
Vertical savings: Cutting 5+ inches off the unit height provides vital clearance for lighting and fire suppression without compromising the finished ceiling height.
Maintenance Notice: Because these units are thinner, they frequently require “room-side replaceable (RSR)” filters. This allows personnel to switch filters from within the cleanroom, eliminating the requirement for a person-sized crawl area above the ceiling.
Traditional "top-down" cleanroom designs make advantage of the area above the ceiling as a “plenum”, which is a big pressurized chamber that circulates air. This requires a few feet of overhead space.
How it Works: Rather than pushing air back up through the ceiling, air is drawn out via low-level vents (return air grilles) at the base of the walls.
The Advantage: You eliminate the requirement for a deep return air plenum above the grid. The "return" occurs through tiny vertical wall cavities (chases) leading back to the Air Handling Unit (AHU).
Airflow Integrity:This increases "laminar" (unidirectional) flow in many circumstances by pulling impurities down and away from the work surface more effectively than a ceiling return.
The "skeleton" of the cleanroom ceiling—the grid that houses the FFUs and lights—is often hung from the warehouse roof with threaded rods. Standard heavy-duty steel grids can be thick and bulky.
Integration: Modern low-profile grids are frequently composed of extruded aluminum and have gasket seats. This permits the FFU to sit inside the grid rather than on top of it, resulting in a flush or near-flush profile.
Direct-to-Structure Mounting: In extreme circumstances, instead of a "hanging" grid, the system is designed to bolt directly to warehouse joists. This involves precise leveling but removes the typical 6-12 inch "drop" necessary for hanging hardware.
The "Weight" Factor: Because aluminum offers a high strength-to-weight ratio, these grids can hold hefty HEPA/ULPA filters without the vertical depth needed for standard steel I-beams.
The Problem: Existing floors might not be rated for heavy manufacturing equipment, and roofs might not support massive HVAC units.
The Solution: * Conducting a professional structural integrity audit first.
Using self-supporting modular wall systems that don't rely on the building's original shell.Distributing weight using specialized mezzanine platforms for mechanical equipment.

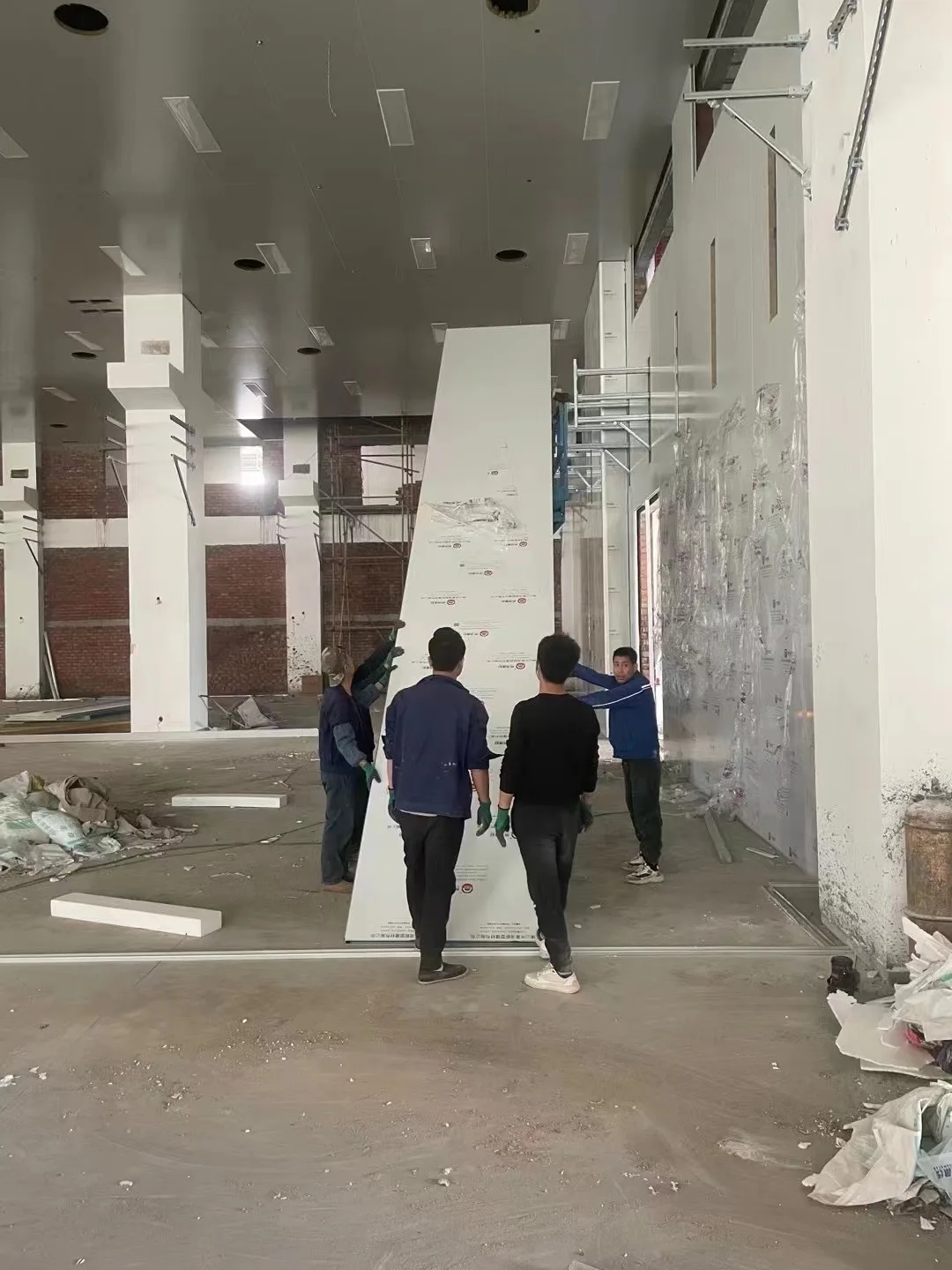

You need to look at the building's DNA before you turn a single bolt. This isn't just a tour; it's a mission to gather information.
Engineers use ground-penetrating radar (GPR) or core sampling to find out how thick the concrete slab is and what its PSI grade is. This tells you if a 5,000-pound CNC machine will sit up straight or start to sink.
Roof Load Testing: Because they have high-static fans and huge filter banks, HVAC units for cleanrooms are much heavier than regular units. A check is done on the "dead load" (the equipment) and "live load" (snow, wind) to see if the trusses need to be strengthened.
The "Why": It keeps things from falling apart disastrously and, more importantly, it gives you the proof you need for building permits and insurance.
The "Box-in-a-Box" method is the best way to build a cleanroom if the building's shell is too weak to hold up a ceiling or heavy wall-mounted utilities.
Independent Skeleton: The framework inside modular systems is made of metal or steel and can hold its own weight. This frame holds the walls and ceiling grid in place instead of hanging from the warehouse roof."Decoupling" means this makes a structural "island." If the warehouse roof bends in a storm, the movement doesn't reach the cleanroom and damage the airtight seals or cause cracks.
Speed: Because these have already been designed, they don't need to be welded together, which is very helpful in "clean" settings.
When the roof can't hold the HVAC and the floor is "just okay," you have to think of other ways to spread the weight.
Mezzanines for equipment: You don't put 10 tons of air handlers on the roof; instead, you build a "dedicated steel mezzanine" inside the building, either above or next to the cleanroom. This puts the load on the machine straight on the floor.
Spreading the load: To protect the floor from low PSI, "spreader beams" or "large steel baseplates" are put under the legs of the mezzanine. Less pressure is put on one point when you make the area where the leg hits the floor bigger.
Vibration Isolation: Vibration dampeners can be added to mezzanines so that the hum of big fans doesn't get in the way of sensitive micromanufacturing going on inside the cleanroom.
The issue is that cleanrooms use a lot of resources. The high needs of constant filtration and specialized processes might not be met by the plumbing or electrical systems that are already in place.
The answer is to design decentralized utility hubs that are specially made for the cleanroom.
Changing to variable-frequency drive (VFD) motors that use less energy will ease the load on the current grid.
Putting together MEP (mechanical, electrical, and plumbing) panels ahead of time makes installation easier because you can just "plug them in and play."
Rather than trying to connect all the pipes and wires to a single, faraway mechanical room, which causes huge drops in pressure and power, you move the "brains" closer to the "body."
Setting up "Utility Skids" or "satellite" hubs right next to the cleanroom is part of "localizing the load." Transformers, water treatment units (RO/DI), and vacuum pumps are all housed in these hubs.
Ease of Expansion: If you need to add another cleanroom section later, you can just add another hub instead of redesigning the core plumbing of the whole building.
If you separate the cleanroom's utilities from the rest of the warehouse's, you can be sure that a surge in the shipping department won't cause a brownout in your ISO-rated setting.
When a motor needs to start, a huge surge of electricity called "Inrush Current" can trip breakers or turn off the lights for the whole block in an old building.
Variable Frequency Drives (VFDs): These gadgets let fans in clean rooms gradually turn on more power instead of going from 0% to 100% power all at once.
Adjustment for Dynamics: It takes more work to move air through dirty HEPA filters. A VFD makes sure that you only use the kilowatt-hours you need by increasing the motor speed just enough to keep the pressure at the right level.
Grid Relief: VFDs can cut total energy use by **25–50%** compared to fixed-speed fans. This makes the cleanroom's "appetite" much easier for an old electrical grid to handle.
In a normal building process, plumbers and electricians cut holes in walls for weeks, which makes dust, which is bad for cleanrooms. Walls become "smart" parts when modular MEP panels are used.
Architecture with "plug-and-play": The factory already put in conduits for electricity, gas, and data ports in these wall panels, so they are ready to use.
Maintenance Access: To fix a leak, these panels often have **removable "chase" covers** that can be taken off. You can get to the pipes from the "dirty" side (the outside) without breaking the seal on the cleanroom or stopping work.
Better Contamination: The time it takes to get certified is cut down by a huge amount because most of the drilling and cutting is done at the plant. On-site installation is basically just "snapping" pieces together.
Summary: Retrofitting is a smart investment if done with a partner who understands the nuances of existing structures.
The Manufacturer Advantage: Why working with a direct manufacturer, Amber,ensures the components are built specifically for the site's constraints.
