AM-FFU15
Amber
AM-FFU15

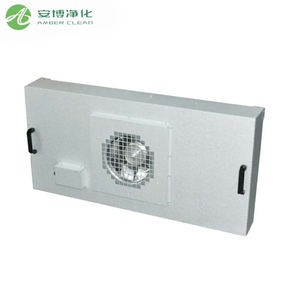

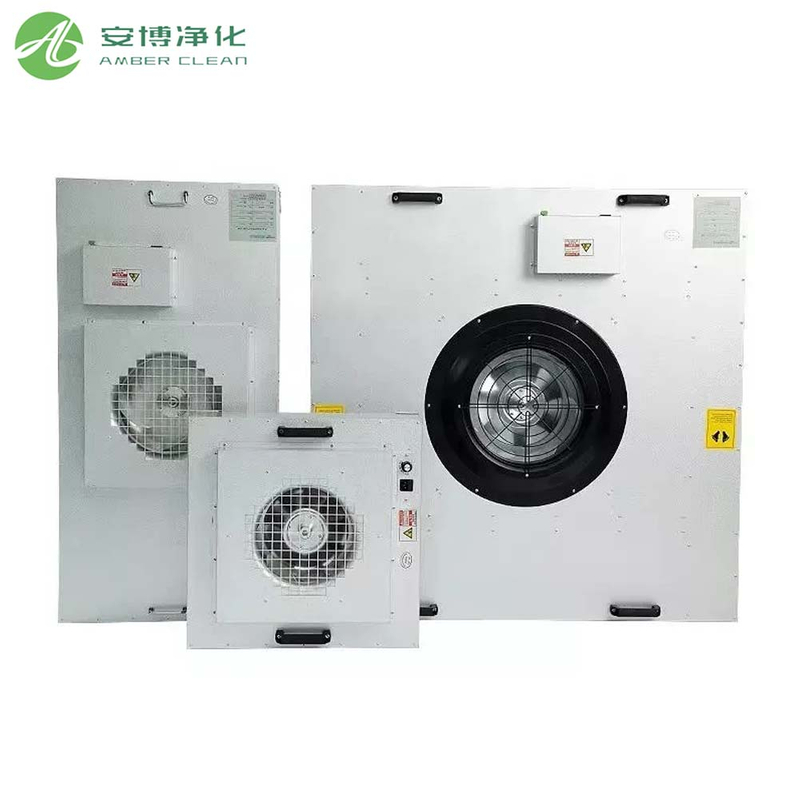

HEPA Fan Filter Unit (FFU) is a cleanroom product that has both a fan and a high-efficiency filter inside. Installed above the cleanroom, it collects air by using its built-in fan, pushing it through the HEPA filter to get rid of particles bigger than 0.3 μm, which ensures ISO 5 to ISO 8 standards are followed.
Based on the different process requirements of cleanrooms, the Amber Laminar Flow Fan Filter Unit primarily employs the following two filtration methods:
Airflow is uniformly blown downward from the top of the Fan Filter Unit, ensuring that clean air flows in a fixed direction at a constant speed, quickly removing contaminants. This is suitable for pharmaceuticals, electronic packaging, and medical operating rooms.
Suitable for areas with moderate cleanliness requirements but needing rapid dilution of contamination sources. Airflow spreads in multiple directions, using recirculating flow to dilute airborne contaminants.
Dual certification to ISO 14644 and CE standards, compliant with international cleanroom regulations.
Equipped with high-efficiency HEPA filters (≥ 99.99% @0.3 μm), with optional ULPA filters available.
The fan features a low-noise, high-static pressure design, suitable for various ceiling-mounted cleanroom installation structures.
Modular design facilitates cleanroom renovation and expansion, reducing operational costs.
Built-in variable frequency speed control allows adjustable airflow to meet different process ventilation requirements.
| Model | FFU-500 | FFU-1000 | FFU-1500 | FFU-2000 |
Outer size(mm) W*D*H | 575*575*230 | 575*1175*230 | 875*1175*230 | 1175*1175*230 |
| HEPA filter(mm) | 570*570*69 | 570*1170*69 | 870*1170*69 | 1170*1170*69 |
| Air flow | 500m³/h | 1000m³/h | 1500m³/h | 2000m³/h |
| Pressure | 210Pa | 210Pa | 220Pa | 230Pa |
| Motor power | 170W | 170W | 210W | 275W |
| Noise | 47-55dB | 47-55dB | 50-58dB | 50-58dB |
| Weight | 27KG | 34KG | 46KG | 55KG |
| Cleanliness | Class 100 (ISO 14644-1) | |||
| Material | Stainless steel/ Galvanized steel/ Coated steel | |||
| Voltage | AC 220V/50HZ (AC 380V/50HZ) | |||
Q1: Can the HEPA Fan Filter Unit be installed and used independently?
A: Yes. The FFU has independent ventilation and filtration functions, suitable for local clean areas or cleanroom renovations.
Q2: Can the size of the Laminar Flow Fan Filter Unit be customised?
A: Customisation is available. Size, airflow, and filtration grade can be customised according to the customer's cleanroom ceiling specifications and process requirements.
For more information about FFU pricing, parameter details, or HEPA Filter Ceiling Fan installation recommendations, please feel free to contact the Amber Team.
