AM-FFU17
Amber
AM-FFU17
Model | FFU-500 | FFU-1000 | FFU-1500 | FFU-2000 |
Outer size(mm) W*D*H | 575*575*230 | 575*1175*230 | 875*1175*230 | 1175*1175*230 |
HEPA filter(mm) | 570*570*69 | 575*1170*69 | 875*1170*69 | 1175*1170*69 |
Air flow | 500m³/h | 1000m³/h | 1500m³/h | 2000m³/h |
Pressure | 210Pa | 210Pa | 220Pa | 230Pa |
Motor power | 170W | 170KW | 210W | 275W |
Noise | 47-55dB | 47-55dB | 50-58dB | 50-58dB |
Weight | 27KG | 34KG | 46KG | 55KG |
Cleanliness | Class 100(ISO 14644-1) | |||
Material | Stainless steel/Galvanized steel/Coated steel | |||
Voltage | AC 220V/50HZ OR (AC 380V/50HZ) | |||
All sizes, materials and parameters can be customized

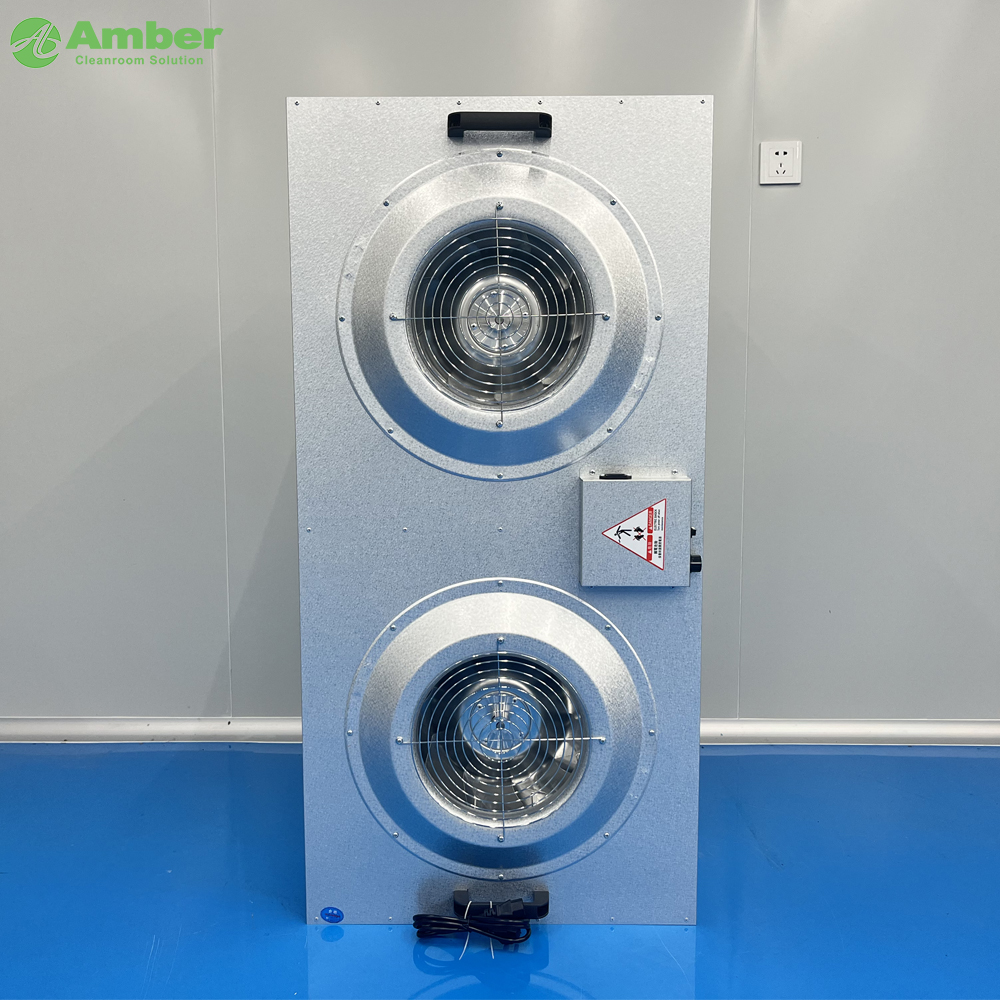

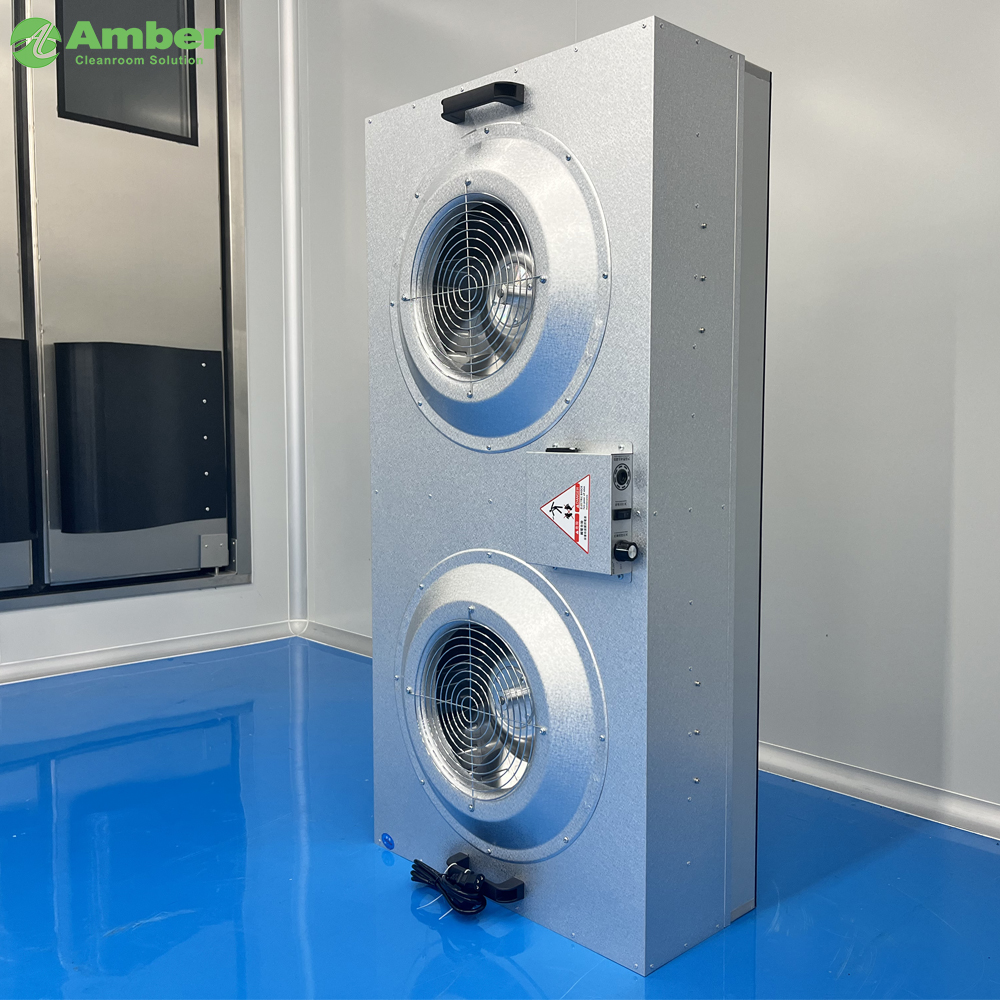

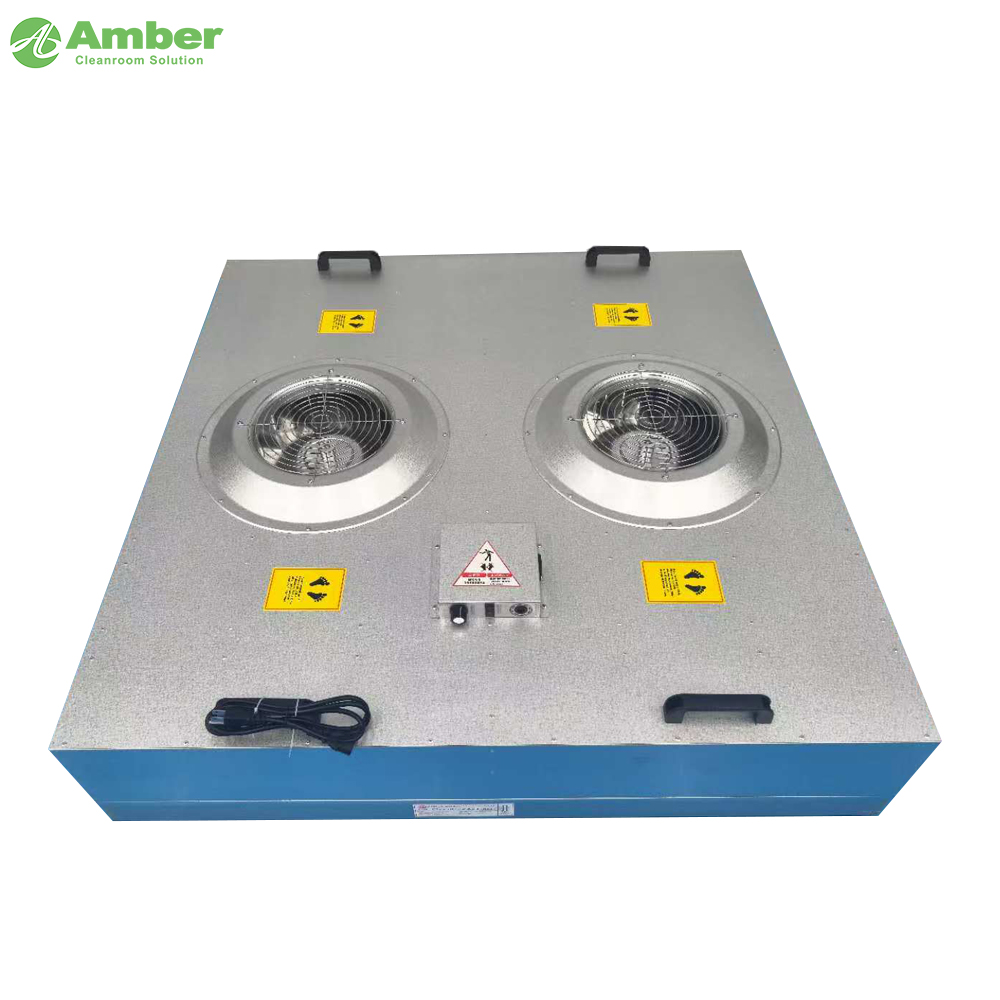

This Waterproof Anti-leakage AC FFU Fan Filter Unit is designed with two fans. Thus, the delivery of air is stable and uniform at all high air volume requirements. This dual-fan design offers better airflow coverage as well as provides good stability to the operation of the system and is therefore popular in high-standard cleanroom use in pharmaceutical and biological laboratories, electronics manufacturing, semiconductors, and medical settings.
When there is not enough cleanroom ceiling or equipment installation room to install two single-fan FFUs side by side or one on top of the other, the installation of a dual-fan FFU can be considered that would effectively increase the airflow in the same enclosure size.
A single fan might not be in a position to maintain the steady airflow in time when utilizing ultra-high-efficiency filters like H14 and U15. Dual fans have the capacity to create more pressure and power to provide a uniform flow of air.
The stability of airflow is even stricter in ISO Class 5 and higher cleanrooms (semi-conductor, pharmaceutical and optical laboratory) where there is a higher demand on airflow stability. FFUs with dual fans have better headroom and redundancy to secure the cleanness of air.
In environments with 24/7 operation, dual fans can share the load, reduce wear on individual fans, and extend equipment life.
In some designs, dual fans can even be configured in a primary/secondary mode. Even if one fan fails, the other can maintain airflow, reducing the risk of downtime.
The core component utilizes a high-efficiency HEPA FFU filtration system, supporting three different filter configurations: H13, H14, and U15. Its filtration efficiency reaches up to 99.999% (U15), effectively removing particles as small as 0.1μm or 0.3μm in diameter, including dust, smoke, and microorganisms. The application of terminal HEPA filters effectively ensures air cleanliness at the terminal, reduces the risk of cross-contamination, and extends equipment lifespan and reduces maintenance costs.
The housing is available in a variety of materials: galvanized steel, SUS304 stainless steel, SUS201 stainless steel, and cold-coated plate, ensuring a balance of strength, corrosion resistance, and aesthetics. The surface color can also be customized to meet customer needs. The filter utilizes an aluminum frame with glass fiber filter paper for excellent durability and sealing. The fan impeller is available in either plastic or aluminum. The aluminum impeller excels in high-efficiency air output, meeting stringent cleanroom air supply requirements.
As a high-performance Clean Room Fan Filter Unit, this product offers highly intelligent expansion capabilities. For example, the following optional devices can be added:
Differential pressure sensor
Oxygen sensor
CO2 sensor
Temperature and humidity sensor
Particle counter
Adapter and data transmission
Touch screen reprogramming and addition
Optional group control module
Galvanized steel plate from a publicly listed company: Shougang, one of China's three largest steel mills.
The motor is plastic-encapsulated, waterproof, dustproof, and leak-proof.
The motor is guaranteed for at least three years.
Q1: Why choose a dual-blower FFU over a single-blower FFU?
A: Dual-blower FFUs offer greater air volume and higher static pressure within the same size range. They are particularly suitable for cleanroom environments with limited space, high-efficiency filtration, or long-term stable operation.
Q2: Where are dual-blower FFUs suitable?
A: They are commonly used in pharmaceutical workshops, semiconductor manufacturing, electronics manufacturing, optical laboratories, and other industries with extremely high air cleanliness requirements. They are particularly effective in environments with limited installation space but high air volume requirements.
Q3: Can dual-blower FFUs be used with high-grade filters?
A: Yes. Dual-blower FFUs can be configured with H13, H14, and U15 terminal HEPA filters, ensuring air volume and filtration efficiency even in high-resistance environments.
Do you need a dual fan FFU Fan Filter Unit solution? Contact us now.
