AM-AS26
Amber
AM-AS26

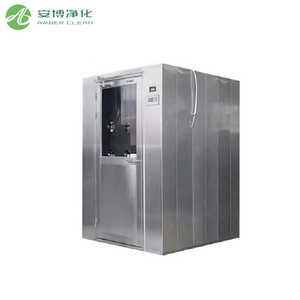

Single Person Double Blowing Air Shower is a kind of important purification equipment installed at the entrance of clean room, single person passes through the design, adopts double side blowing method, high-speed clean airflow effectively removes the dust attached to the surface of personnel or articles, and prevents the pollutants from being brought into the clean area. It is an indispensable part of modern Air Shower for Clean Room system, which is widely used in electronics, pharmaceuticals, biological laboratories, food processing and other industries with high requirements for environmental cleanliness.
Through the built-in high-efficiency filtration system and automatic sensing device, when entering the Cleanroom Air Shower, the equipment will automatically start the high-pressure airflow to completely blow away the fine dust attached to the surface of the personnel's clothing, to ensure the stability and safety of the internal environment of the clean room.
Double Blowing, Clean and Efficient: Compared with single blowing, double side high pressure airflow covers more comprehensively and the cleaning effect is remarkable, which is suitable for Air Shower Clean Room Design with strict requirements on cleanliness.
Intelligent interlocking system: the interlocking design of the entrance and exit door ensures that another door can be opened only after the blowing process is completely finished, effectively avoiding the direct entry of external air into the clean room and enhancing the cleanliness and safety level.
High-efficiency filtration system: Equipped with HEPA high-efficiency filter, it can filter 99.99% @0.3μm particles to ensure the cleanliness of blowing airflow and continuously maintain the clean environment standard.
Humanised operation experience: Equipped with sensor automatic door, LED lighting and operation panel, the operation is simple and intuitive, adapting to a variety of use scenarios and enhancing the efficiency of personnel entering and leaving the clean area.
| Model | FLS-1200-1 single person single blow | FLS-1300-1 single person double blow | FLS-1300-2 | FLS-1300-3 |
| Size mm(W*D*H) | 1200*1000*2050 | 1300*1000*2050 | 1300*1500*2050 | 1300*2000*2050 |
| Inner size mm(W*D*H) | 800*920*1920 | 800*920*1920 | 800*1420*1920 | 800*1920*1920 |
| Applicable no. of persons | 1-2 person | 1-2 person | 2-4 person | 3-6 person |
| Filter size mm | 610*610*100*1 | 610*610*100*2 | 610*610*100*2 | 610*610*100*4 |
| Filter efficiency | 99.99%@0.3μm | |||
| Moto power | 1.1KW*1 | 0.75KW*2 | 1.1KW*2 | 1.1KW*4 |
| No. of nozzle | 12 | 12 | 18 | 24 |
| Air speed | 18-22m/s | |||
| Showing time | 10-99s adjustable, set 15s | |||
| Noise | ＜65 dB | |||
| Voltage | AC 380V/50HZ AC 220V/50HZ | |||
