AM-SWP07
Amber
AM-SWP07
In modern construction, House EPS Wall Panels are characterised by thermal and acoustic insulation and light weight, and are widely used in residential, office and temporary buildings.
House EPS Wall Panels are made up of three main components: the core, the panels and the bonding layer. The core is made of Expanded Polystyrene (EPS), which has thermal insulation properties and is lightweight, making it easy to transport and install. Common materials for the panels include galvanised colour steel, fibre cement board or aluminium-zinc plated boards, which are chosen flexibly according to the environment to ensure that the walls are structurally stable, corrosion-resistant and aesthetically pleasing.
In addition, Foam Sandwich Wall Panels are also used in some projects, combining EPS foam with PUF Sandwich Panels to further enhance the thermal, acoustic and fire resistance properties of the wall, and to meet the higher demands for building comfort and safety.

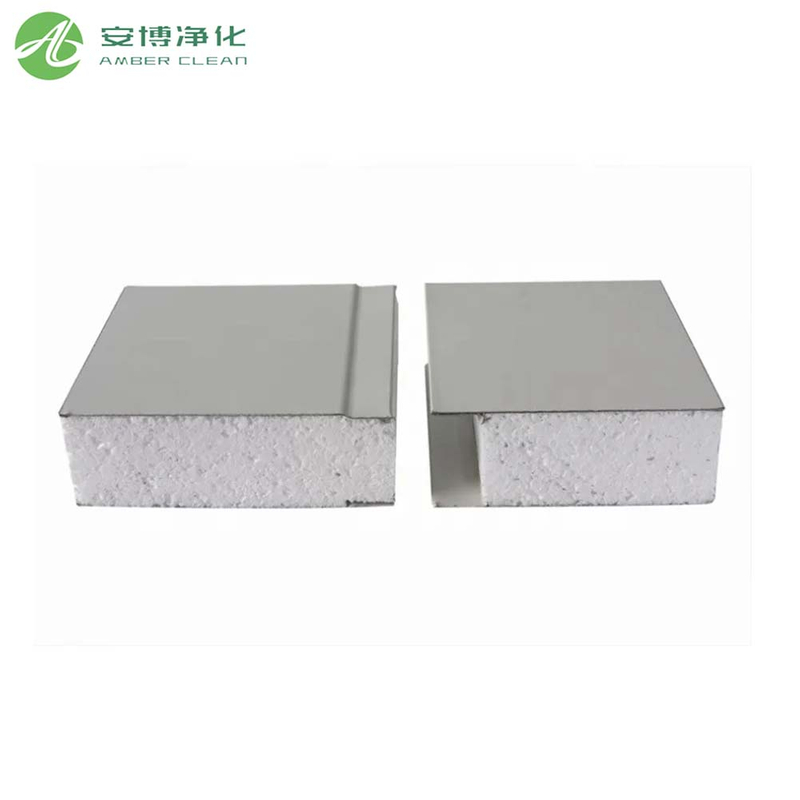

The Sandwich Wall Panel consists of a high-density foam core laminated with double-sided sheathing.
1. Effective barrier to external temperature changes
2. Acoustic isolation
3. easy installation and short construction period
| Sandwich panel | Double steel + EPS filler |
| Fire proofing | B |
| Weight capacity | 80KG/㎡ |
| Size | 1150mm width, height customized |
| Steel thickness | 0.376mm, 0.426mm, 0.476mm, 0.526mm, 0.576mm |
| Thickness | 50mm, 75mm, 100mm |
| Installation | 1. We send engineer to customer side 2. Construct out to construction team 3. Customer send technicist to our company for free studying |
Q1: What is the difference between EPS wall panels and Foam Sandwich Wall Panels?
A: EPS Wall Panels are composite wall panels with polystyrene foam as the core material, while Foam Sandwich Wall Panels can be combined with PUF Panel for Wall or other foam core materials, which have better thermal insulation and structural performance, and are suitable for projects with higher requirements for thermal insulation and fire protection.
Q2: Is the installation of House EPS Wall Panels complicated?
A: Not complicated. The wall panels are designed with plug-in type or enterprise mouth type, which is quick to assemble on site without a large number of construction workers and short construction period, suitable for quick installation projects.
