AM-HB17
Amber
AM-HB17

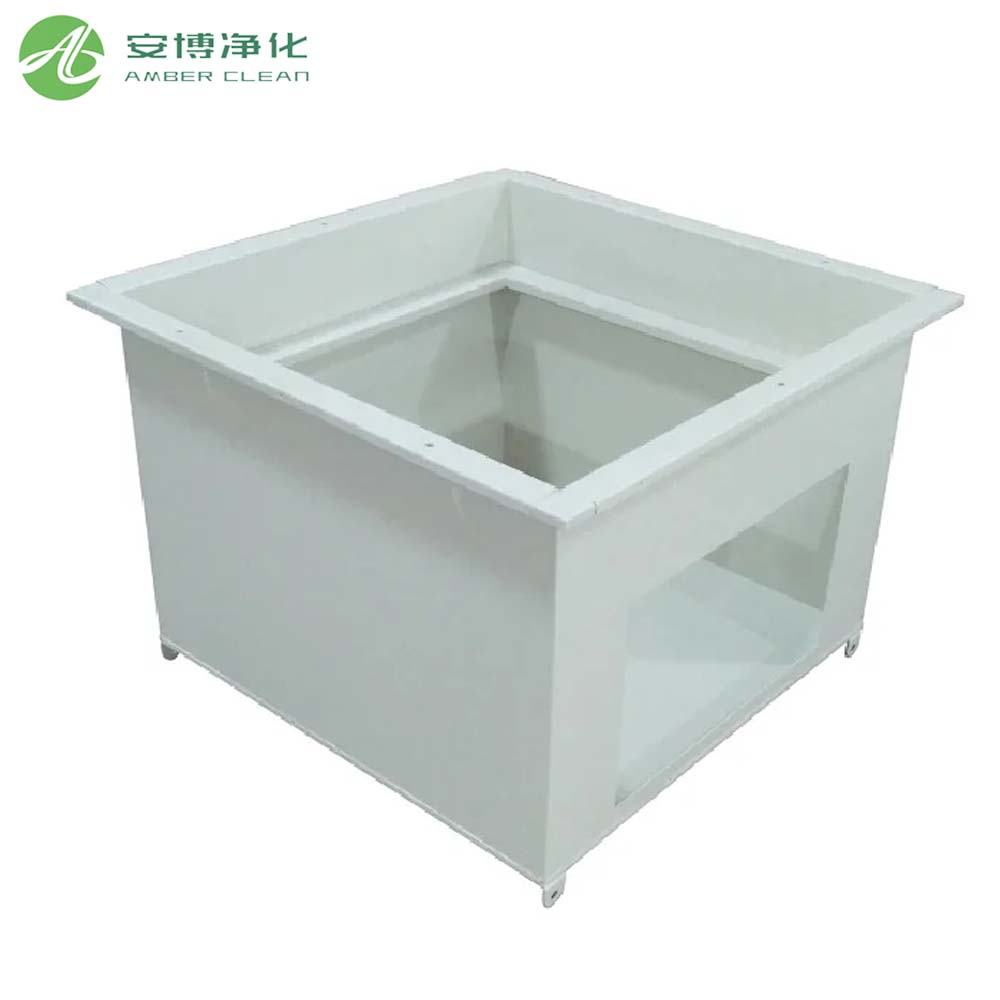

The static pressure HEPA Box Fan Filter works as a single device by combining a HEPA filter with an independent fan. With the help of a fan, the air flows in from outside and the HEPA filter efficiently traps almost all particles down to 0.3 μm. As needed by the cleanroom, the system manages the speed and strength of airflow to maintain a consistently clean and germ-free environment.
1. Built-in high-efficiency HEPA filter core, combined with the Inline HEPA Filter Box design, can be flexibly installed in the cleanroom air supply duct system
2. The HEPA Box Fan Filter is equipped with an independent fan with static pressure adjustment functionality, enabling flexible adjustment of airflow volume according to system requirements to effectively maintain positive pressure and laminar flow within the cleanroom
3. The HEPA Inline Filter Box adopts a modular design, with a compact structure and minimal space requirements, making it suitable for ceiling or duct-mounted installation, and facilitating filter cartridge replacement.
1. Pharmaceutical industry: Makes sure that dust and contamination are not present during the production and packaging of medicines, according to GMP standards.
2. Food manufacturing: Guards against particles flying into packaging, thus protecting food and keeping it fresh over a longer time.
3. Cosmetics factories: Perform proper control of small particles, dust and fragrance in the air to ensure safe products in the factory.
4. Optical semiconductors: Maintain optical semiconductors in clean conditions to guarantee the best quality of manufacturing chip and lenses.
| Model | Air flow(m³/h) | HEPA filter(mm) | Box size(mm) | Flange size(mm) | Hole open size(mm) |
| SFK-320 | 500 | 320*320*90 | 370*370*460 | 200*200 | 385*385 |
| SFK-320D | 370*370*260 | ||||
| SFK-484 | 1000 | 484*484*90 | 534*534*460 | 320*200 | 555*555 |
| SFK-484D | 534*534*260 | ||||
| SFK-610 | 1500 | 610*610*90 | 680*680*460 | 400*200 | 675*675 |
| SFK-610D | 680*680*260 |
Q1: Why are HEPA filters rarely used in residential environments?
A: Although HEPA ensures that very small particles are captured, the high resistance makes it difficult for the fan to work which costs more to maintain. Thus, HEPA Filter Boxes play a major role in cleanrooms, pharmaceutical clean zones and optical semiconductor cleanrooms.
Q2: What are the potential side effects of long-term use of HEPA air purifiers?
A: Professional HEPA filtration equipment itself has no side effects, but if the filter cartridges are not replaced regularly, filtration efficiency may decline, potentially leading to secondary pollution.
