AM-PB12
Amber
AM-PB12
Model | CDC-400 | CDC-500 | CDC-600 | CDC-800 |
Out size mm(W*D*H) | 400*400*400 | 500*500*500 | 600*600*600 | 800*800*800 |
Inner size mm(W*D*H) | 300*300*330 | 400*400*430 | 500*500*530 | 700*700*730 |
Model | CDC-400N | CDC-500N | CDC-600N | CDC-800N |
Out size mm(W*D*H) | 500*500*470 | 600*600*570 | 700*700*670 | 900*900*870 |
Inner size mm(W*D*H) | 400*400*400 | 500*500*500 | 600*600*600 | 800*800*800 |
Door type | Built-in double toughened glass door | |||
Material | 1.0mm SUS304 or SUS201 or coated steel | |||
Interlocked structure | Mechnical interlock or Electric interlo | |||
Voltage | AC 220V/50HZ | |||

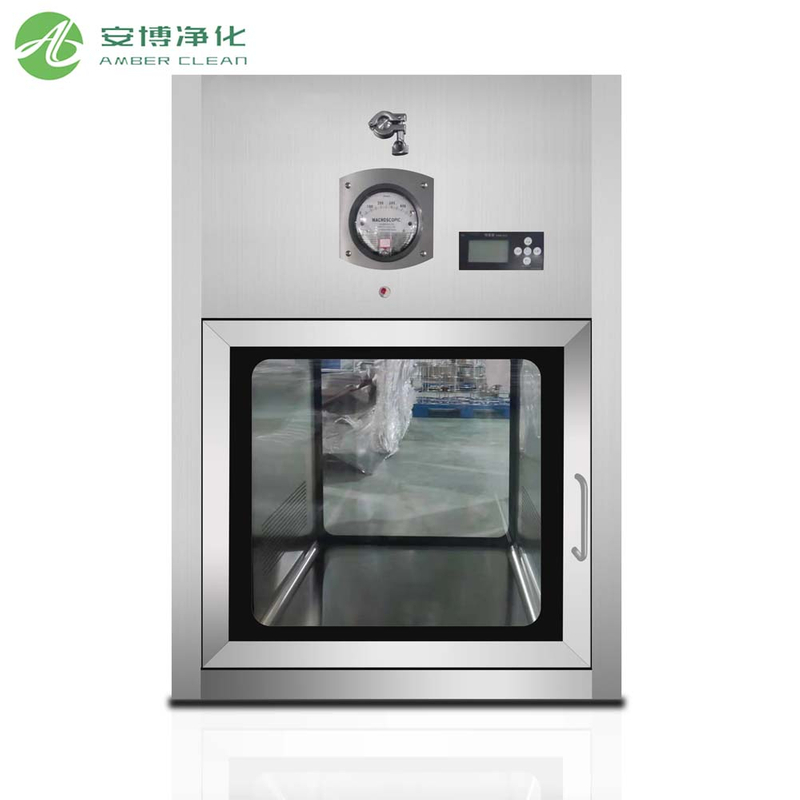

Amber's Pass Box is a kind of auxiliary equipment of clean room, mainly used for transferring small items between clean area and clean area, between clean area and non-clean area, in order to reduce the number of times of opening the door of the clean room, and reduce the pollution to the clean room to the lowest degree.
Flat and clean.
With electronic or mechanical interlocking device.
Equipped with ultraviolet germicidal lamp.
Double doors are interlocked to effectively prevent cross-contamination.
Electronics Manufacturing
Pharmaceuticals
Medical Devices
Laboratories, etc.
Q1: What is the difference between a Pass Box for Clean Room and an FFU?
A: The Pass Box is primarily used to transfer materials between the cleanroom and outside to prevent cross-contamination, while the FFU is used to provide clean air. Using both together can improve overall cleanroom operation efficiency and safety.
Q2: What is the main function of the FFU for Clean Room?
A: The FFU (Fan Filter Unit) uses a built-in fan and HEPA filter to continuously deliver laminar air to the cleanroom area, effectively removing suspended particles and ensuring a stable cleanroom cleanliness level.
Customization of Pass Through Box is supported. Contact us to get your customized solution and quotation.
