Class 100 Simple Clean Room Modular Clean Booth with Anti-static Curtain

The Clean Booth is a simple clean room air purification system designed for use in areas within the operating area requiring high cleanliness levels. It utilizes a frame made of industrial aluminum, stainless steel, or plastic-sprayed iron. Surrounded by anti-static curtains, PVC curtains, or tempered glass, the Clean Booth is equipped with a fan-filter unit (FFU) air supply system, achieving cleanliness levels from Class 100 to Class 10,000.
Availability:
Quantity:
  • AM-CB001

  • Amber

  • AM-CB001


A Clean Booth is a simple clean room equipment that achieves high level clean room environment through local air purification. It can be installed inside a typical factory building and can meet Clean Room Classifications, which range between ISO 5 (Class 100) to 8 (Class 100000) without much renovation being needed. The cleanroom has a ventilation unit (FFU) that purifies and circulates air in a specific way. With anti-static soft curtains used on it, this generates a stable one direction of the air flow so a clean room environment which meets standards can be created within hours. This is a mobile and flexible Clean Work Booth that is especially applicable in a situation where a company needs a high cleanroom space in a short time.

Working Principle of the Clean Room Booth

This device draws in air through the FFU Fan, which then passes through a primary filter and a high-efficiency (HEPA/ULPA) filter, creating a vertical, unidirectional flow. It filters 99.97% of particles ≥ 0.3μm and 99.9995% of particles ≥ 0.12μm.

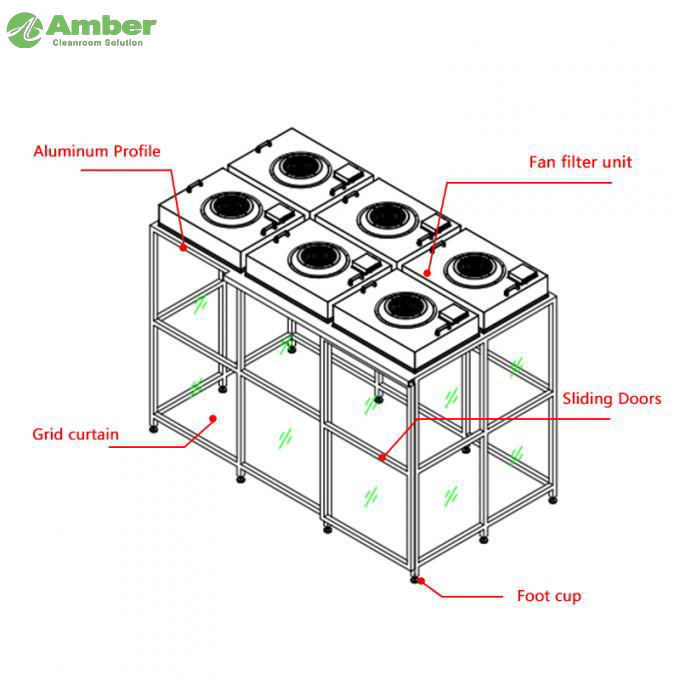

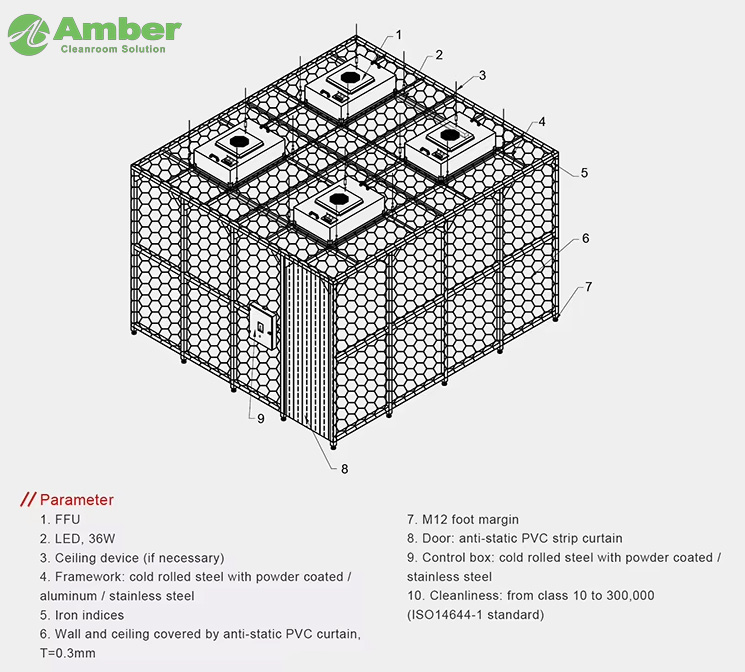

Clean Room Booth Structure


Clean Booth


  • Frame: Made of aluminum alloy, SS201, SS304, or galvanized steel pipes with spray coatings

  • Air Supply Unit (FFU): Mounted on the top, purifies air through a high-efficiency (HEPA/ULPA) filter.

  • Anti-static Curtains: Anti-static PVC curtains are installed around the perimeter to effectively isolate external airflow and prevent the ingress of dust particles.

  • Lighting: High-efficiency, energy-saving lighting ensures uniform lighting in the work environment.

  • Control Panel: A multi-functional integrated control panel provides convenient operation.

This structure allows the Clean Booth to meet stringent cleanliness requirements while maintaining flexibility and affordability.

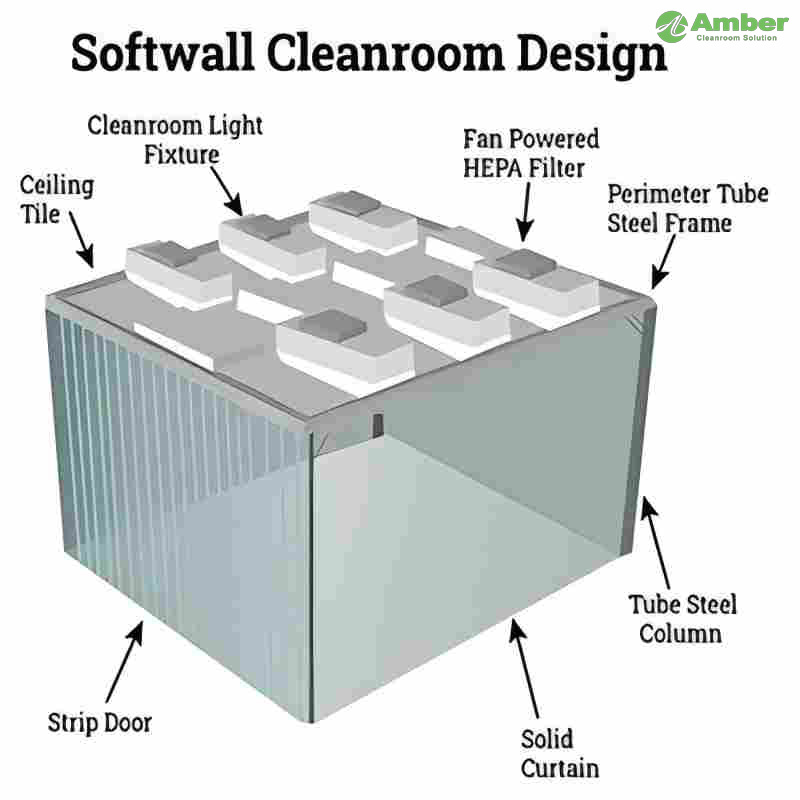

Clean Booth Features


Clean Booth


  • High-Efficiency Cleanroom Performance: Achieve a Class 100 cleanroom environment through FFU + HEPA filtration.

  • Flexibility: Modular design allows for mobility, expansion, and quick assembly and disassembly, making it suitable for a variety of scenarios.

  • Various Cleanroom Classes: Typically, it can meet ISO Class 5 (Class 100) to ISO Class 8 (Class 100000).

  • Cost Advantage: More economical than building a complete cleanroom, with a shorter construction period and lower investment costs.

  • Various Sizes: Customizable to meet specific needs.

Thus, the Portable Clean Booth is not only a cost-effective option, but also a cleanroom solution that quickly responds to market demands.

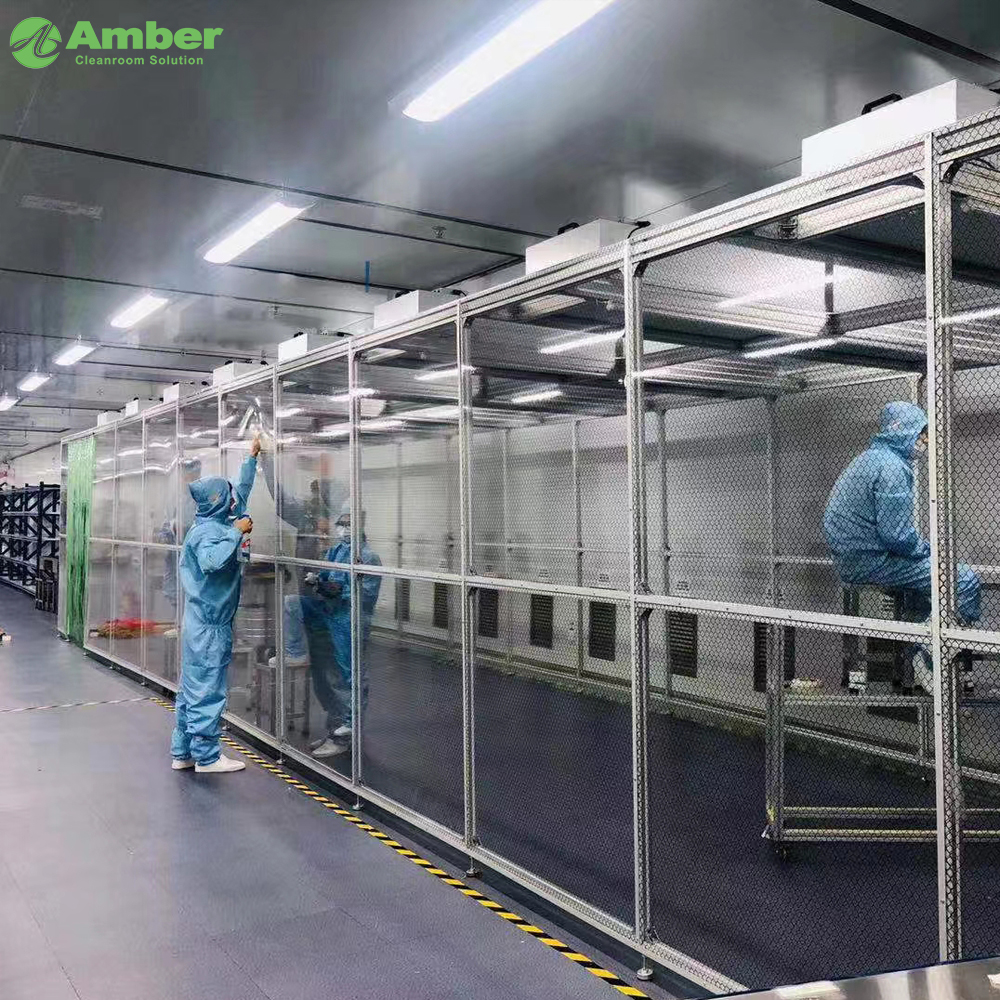

Applications of Clean Work Booth


clean work booth


  • Electronic component assembly

  • Laboratory sample processing

  • Pharmaceutical product packaging

  • Precision instrument operation

  • Optical component inspection

Detailed parameters

Clean room size 4980*3600*2240(Customized according to actual needs)
Frame material Aluminum profile, SS201, SS304, galvanized pipe spray paint optional
FFU quantity 4/8(According to the clean booth grade)
Power source 220V/50HZ
Filtration efficiency 99.995%@0.3μm
wind speed 0.45-0.95m/s±5%
Power 150-190w±5w
Noise 48-58dB±5dB


Amber has over 17 years of experience in the cleanroom industry, serving over 120 countries. We offer one-stop cleanroom services. If you require assistance, please contact the Amber Team via email or online.


Clean Booth


FAQ

Q1: What is the difference between a Clean Room Booth and a traditional cleanroom?

A: Cleanrooms are more flexible and economical, suitable for localized cleanroom needs, with a shorter construction period and portability. Traditional cleanrooms, on the other hand, cover the entire space and are suitable for long-term, fixed, large-scale cleanroom production.

Q2: Can Clean Room Booths be customized?

A: Yes. We offer customized services based on customer needs, including cleanroom class, dimensions, number of air supply units, anti-static configuration, and more, to ensure compliance with various industry standards.

Q3: How long does it take to install a Clean Room Booth?

A: Compared to traditional cleanrooms, Clean Room Booths are much faster to set up, typically within a few days, and can be expanded or relocated at any time based on project needs.
