AM-PRP09
Amber
AM-PRP09

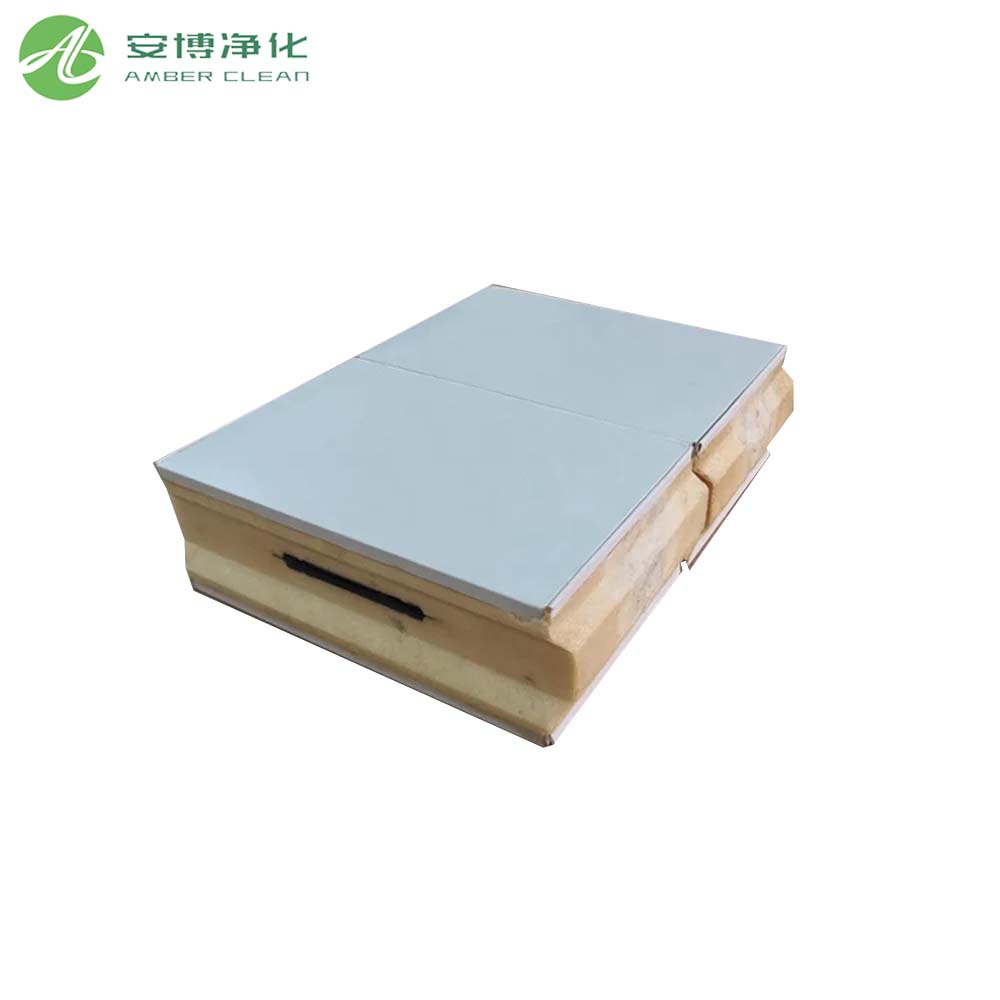

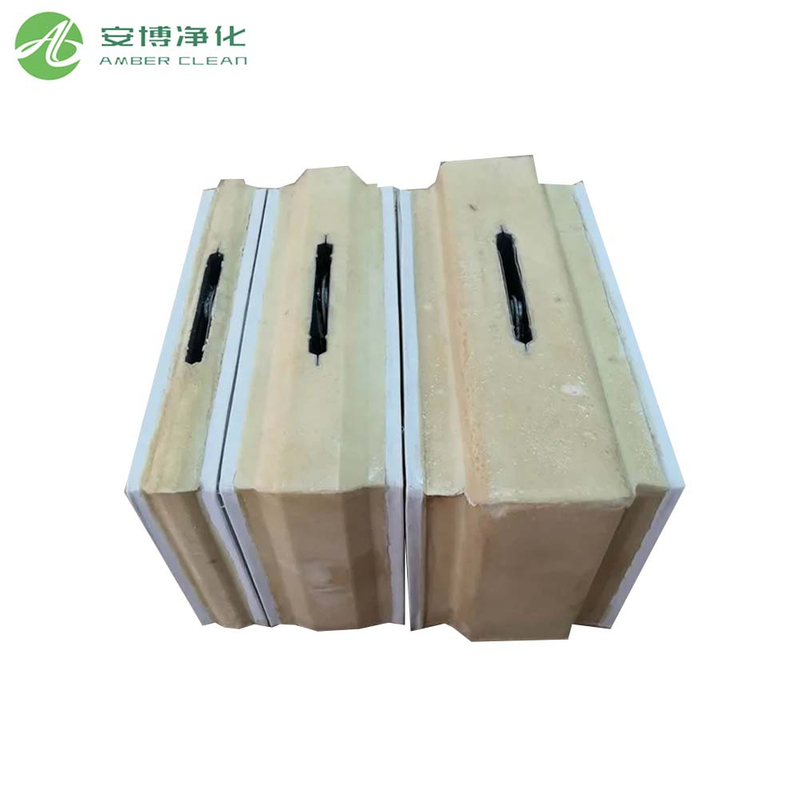

Double Steel PIR Wall Sandwich Panel is a high-performance wall sandwich panel that combines excellent thermal insulation performance, fire resistance and structural strength. The product uses double-sided high-quality color-coated steel plates, filled with high-density PIR (polyisocyanurate) foam core material in the middle, with a core density of 100KG/㎡, which can be widely used in cold storage, clean rooms, food workshops, pharmaceutical factories and industrial building enclosure systems.
PIR core material has low thermal conductivity and good thermal insulation performance
High fire resistance
Double-sided color steel plate combination, high-strength structure
The panel adopts a plug-in design for easy installation
When installing PIR Wall Panel, in order to ensure the installation effect and service life, special attention should be paid to the following aspects:
Ensure that the installation site is clean and flat to avoid debris on the ground affecting the splicing quality.
Check the specifications, quantity and surface condition of the panels before construction to avoid scratches or deformation.
Line positioning: Position the line on the ground and top structure according to the design drawings to ensure the uniform installation direction.
Fix accessories: Install auxiliary components such as ground rails, top rails and columns to ensure the overall stability of the wall.
Panel installation: Use plug-in jointing method, install from one side in sequence, and apply special sealant to the joints to improve the sealing and insulation effect.
Install the end parts: After the assembly is completed, install the edge, yin and yang corners and other accessories to ensure the overall beauty and tight sealing.
During the installation process, avoid hard objects hitting the panel to prevent damage to the surface of the color-coated steel plate.
The joint gap must be ensured to be uniform, and the sealant must be applied continuously and fully to prevent thermal bridges.
As a PIR Insulated Wall Panels Manufacturer with more than 17 years of experience, Amber insists on using international standard environmentally friendly raw materials. Our products have passed multiple quality inspections and certifications, and after-sales service is guaranteed. You can rest assured when choosing us.
Q1: What accessories are needed for PIR Wall Panel Installation?
A: Common accessories include ground rails, top rails, columns, corners, stainless steel bolts and special sealants, which are used with plug-in panels to ensure the stability and sealing of the wall.
Q2: How to prevent the deformation of sandwich panels during transportation?
A: We use multi-layer protective packaging and are equipped with special transport racks to prevent the panels from being compressed, bumped and scratched during transportation.
