Views: 0 Author: Site Editor Publish Time: 2025-09-26 Origin: Site
Cleanroom design and build is vital for industries like pharmaceuticals and electronics. These controlled environments ensure product quality and regulatory compliance. Building a cleanroom goes beyond technical expertise; it requires a deep understanding of industry standards.
In this guide, you’ll learn the key steps in cleanroom design and build, from planning to certification. We’ll discuss how to meet cleanliness requirements and avoid common pitfalls in the process.
The process of cleanroom design and build involves creating an environment that meets specific cleanliness standards while addressing the practical needs of the industry it serves. Cleanrooms are designed to minimize particulate contamination, temperature fluctuations, and other environmental factors that could negatively affect the products being produced or the processes being carried out.
The cleanroom's design encompasses various elements, from the materials used in its construction to its layout and airflow systems. Balancing cleanliness with functionality is essential, as the cleanroom must be practical for workers and equipment while maintaining the highest cleanliness standards.
Cleanroom classes, defined by ISO standards, are critical to determining how the room should be designed. These classifications range from ISO 1 (the cleanest) to ISO 9 (the least clean). The cleanroom class affects key design elements, such as air filtration, airflow patterns, and HVAC systems. For example, an ISO 5 cleanroom requires high-efficiency particulate air (HEPA) filters and a specialized airflow system to meet the strict standards of cleanliness.
● Industry-specific needs: Biotech may require ISO 5, while electronics might need a less stringent ISO 7.
● Product requirements: The sensitivity of the product being manufactured influences the class choice.
The cleanroom class impacts the overall design, from the materials used for walls and floors to the airflow configuration. For example, ISO 5 cleanrooms often feature unidirectional airflow, while ISO 7 might use non-unidirectional airflow.
Each industry has its own set of regulations that must be followed when designing and building cleanrooms. These include ISO 14644, Good Manufacturing Practices (GMP), and United States Pharmacopeia (USP) standards.
Key Standards:
● ISO 14644-1: This standard classifies cleanrooms based on air cleanliness and particle count.
● GMP: Required for pharmaceutical cleanrooms to ensure product quality and safety.
● USP: Particularly relevant for medical and pharmaceutical cleanrooms, outlining specific requirements for compounding and sterilization areas.
Compliance with these standards is necessary to ensure that the cleanroom is not only functional but also compliant with the regulations governing its specific industry.
The first step in the cleanroom design process is assessing the specific needs of the facility. This includes understanding the type of industry, the level of cleanliness required, and the specific operations the cleanroom will support. Key considerations include:
● Cleanliness Level: Determining the ISO class based on industry needs.
● Personnel Flow: Ensuring there is a smooth and efficient flow of people while preventing cross-contamination.
● Equipment Load: Planning for the equipment that will be used in the cleanroom and its impact on space, airflow, and contamination control.
Tip: Involve key stakeholders early in the planning phase to align on cleanliness requirements and operational needs.
Once the needs are assessed, the design phase begins. This includes creating a layout that optimizes space and workflow, while ensuring that the cleanroom meets the required cleanliness standards.
● Space Planning: This involves designing the layout of the cleanroom, ensuring there’s adequate space for equipment and personnel while maintaining cleanliness.
● Material Selection: Choosing materials like smooth, non-porous flooring, walls, and ceilings that are easy to clean and resistant to contamination.
● Airflow Configuration: Deciding between unidirectional or non-unidirectional airflow based on the cleanroom class.
After the preliminary design, detailed construction documents are created to communicate the design to the construction team. These documents include specifications for HVAC systems, material choices, and construction details. Clear and precise documentation ensures the construction process runs smoothly and meets the design criteria.
Construction Phase: During construction, it's essential to follow cleanroom protocols to maintain cleanliness. Specialized construction techniques, such as using HEPA-filtered air during installation, help ensure the room is not contaminated during the build.
Airflow is one of the most critical components of cleanroom design. The airflow system removes contaminants from the room by directing clean air into the room and allowing contaminated air to exit.
● Unidirectional Airflow: This type of airflow is used in higher-class cleanrooms like ISO 5. It pushes clean air in one direction, ensuring contaminants are quickly removed.
● Non-Unidirectional Airflow: Used in lower-class cleanrooms (ISO 7 and ISO 8), where air is filtered and mixed with the room’s air to dilute contaminants.
HEPA/ULPA Filters: These filters are used to ensure air cleanliness. HEPA filters remove 99.97% of particles that are 0.3 microns or larger, making them essential for high-precision cleanrooms.

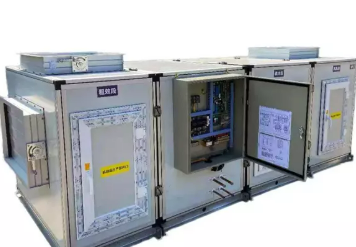

The HVAC system is responsible for maintaining the right temperature, humidity, and air cleanliness. A properly sized system ensures optimal cleanroom performance. Factors to consider when designing the HVAC system include:
● Temperature Control: Ensuring the room remains within a specific temperature range.
● Humidity Control: Maintaining the appropriate humidity levels to prevent static buildup or condensation.
● Pressure Differentials: Positive pressure is essential for cleanrooms where contamination protection is critical.
Tip: Collaborate with HVAC experts early in the design phase to ensure the system can handle the load and meet cleanliness requirements.
The number of air changes per hour (ACH) is a critical factor in determining the cleanliness of a cleanroom. ACH refers to the amount of air the HVAC system filters in one hour relative to the room’s size.
● ISO 5: Requires 240-360 ACH.
● ISO 7: Typically requires 30-60 ACH.
Maintaining the appropriate ACH ensures that the cleanroom meets the necessary cleanliness standards.
Choosing the right materials for cleanroom construction is essential for maintaining cleanliness. Smooth, non-porous materials reduce the accumulation of particles and make cleaning easier. Common materials include:
● Flooring: Vinyl or epoxy flooring is commonly used for its durability and resistance to contamination.
● Walls and Ceiling: Smooth, non-porous materials like stainless steel or fiberglass-reinforced plastic are ideal for high-grade cleanrooms.
Gowning rooms (or ante-rooms) play a crucial role in reducing contamination risks. These rooms provide space for workers to change into cleanroom garments before entering the sterile environment. Properly designed gowning rooms include:
● Airlocks: These prevent contamination from entering the cleanroom when doors are opened.
● Flow Zones: Dividing the gowning area into specific zones for different tasks (e.g., gowning, sanitization) reduces the risk of cross-contamination.
Windows allow for observation of cleanroom activities and reduce feelings of isolation for workers. Proper lighting is also essential for safety and productivity. Key considerations include:
● Lighting: LED lights are preferred for their energy efficiency and minimal heat output.
● Window Placement: Windows should be strategically placed to avoid contamination while offering visibility.
Material transfer is a critical part of cleanroom design. Pass-through chambers or roll-up doors minimize contamination risks during material transfers. These systems ensure the cleanroom’s integrity is not compromised when items are moved in or out.
Certification ensures that the cleanroom meets the required standards for cleanliness and environmental control. Key certifications include:
● ISO 14644-1: This standard measures air cleanliness and particle counts.
● GMP and USP: These certifications are required for cleanrooms in the pharmaceutical and medical industries.
The certification process involves several stages to ensure the cleanroom meets all design specifications:
● Design Qualification (DQ): Ensures the cleanroom design meets cleanliness criteria.
● Installation Qualification (IQ): Verifies that the systems are installed correctly.
● Operational Qualification (OQ): Tests the cleanroom’s operations.
● Performance Qualification (PQ): Validates performance under real operating conditions.
If a cleanroom fails certification tests, adjustments may be needed. Common issues include airflow problems or issues with air filtration. It’s crucial to identify the root cause and make necessary changes before retesting.
To maintain certification and cleanliness standards, cleanrooms must undergo routine testing and monitoring. This includes:
● Particle Count Testing: To ensure air quality meets the required standards.
● Filter Checks: Ensuring air filters are functioning properly.
Ongoing maintenance is essential to keep the cleanroom operating efficiently. This includes regular cleaning protocols, HVAC maintenance, and equipment checks.
As technology and processes evolve, cleanrooms may need to be adjusted. Ensuring flexibility in design allows for these changes without compromising cleanliness.

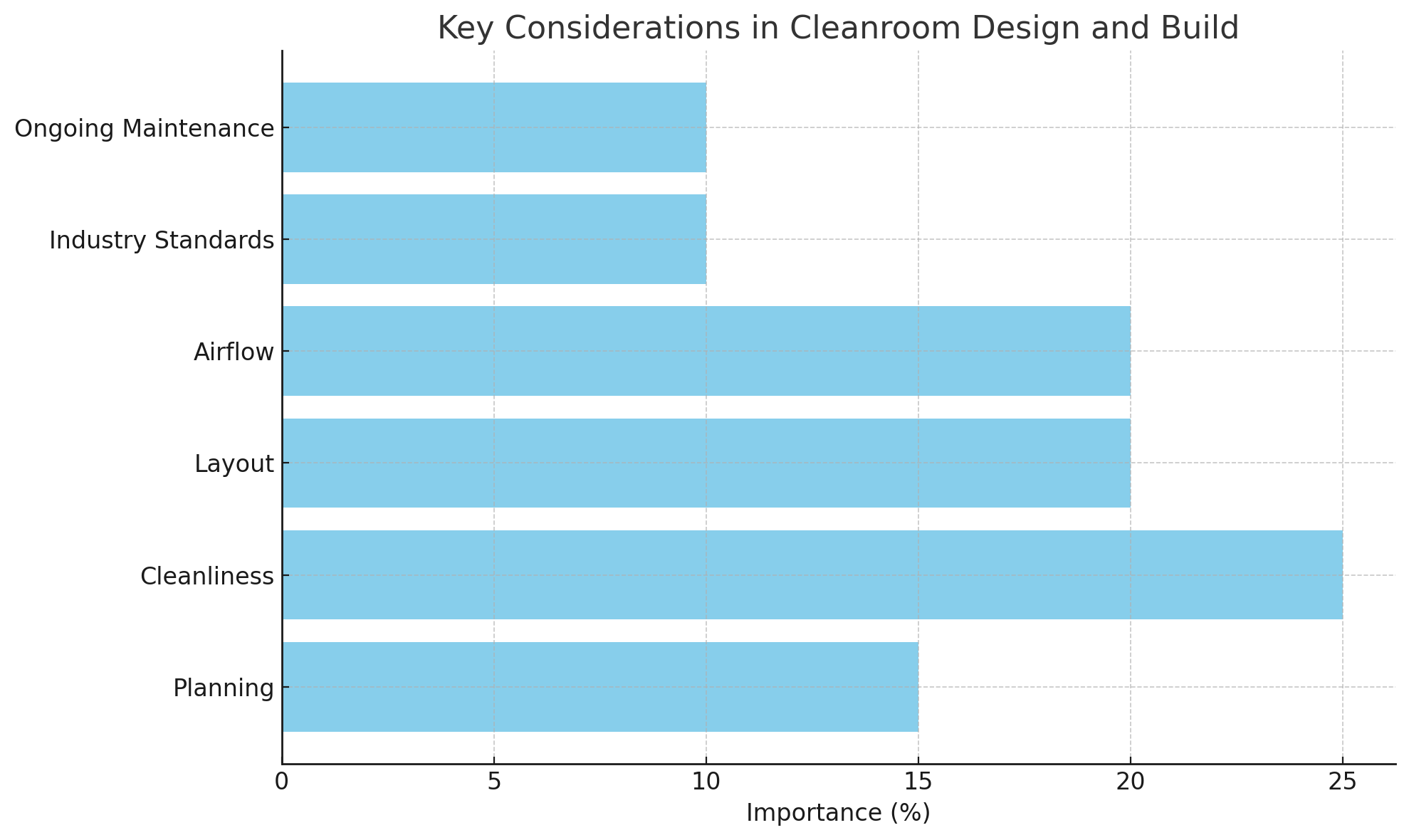

The successful design and build of a cleanroom requires careful planning and strict adherence to industry standards. Key factors like cleanliness, layout, and airflow must be balanced to create a compliant, efficient environment. By collaborating with experts and staying aligned with industry guidelines, businesses can ensure their cleanroom’s long-term success.
Amber's products offer unique solutions to meet these needs, providing value by ensuring compliance and efficiency in cleanroom design and build processes. With their expertise, companies can build cleanrooms that meet the highest standards.
A: Cleanroom design and build involves creating controlled environments that meet strict cleanliness standards. It includes planning the layout, airflow, materials, and ongoing maintenance to ensure compliance with industry standards.
A: Cleanroom design is crucial for maintaining product quality and meeting regulatory standards. A well-designed cleanroom reduces contamination risks and ensures operational efficiency.
A: The cleanroom class depends on your industry and the required cleanliness level. Higher-class cleanrooms, like ISO 5, are essential for sensitive processes, while lower classes may suffice for less critical applications.
A: Key considerations include cleanliness, layout, airflow, HVAC systems, and compliance with industry standards. Balancing these elements ensures the cleanroom meets operational needs and regulatory requirements.
A: The cost of cleanroom design and build varies depending on factors like size, required cleanliness level, and industry-specific regulations. A detailed needs assessment can help estimate the overall cost.
A: The timeline for cleanroom design and build depends on complexity and requirements. Typically, it can take several months from planning to construction and certification.
A: Ongoing maintenance includes routine testing, air quality monitoring, filter replacement, and cleaning protocols to ensure the cleanroom remains compliant and functional.
